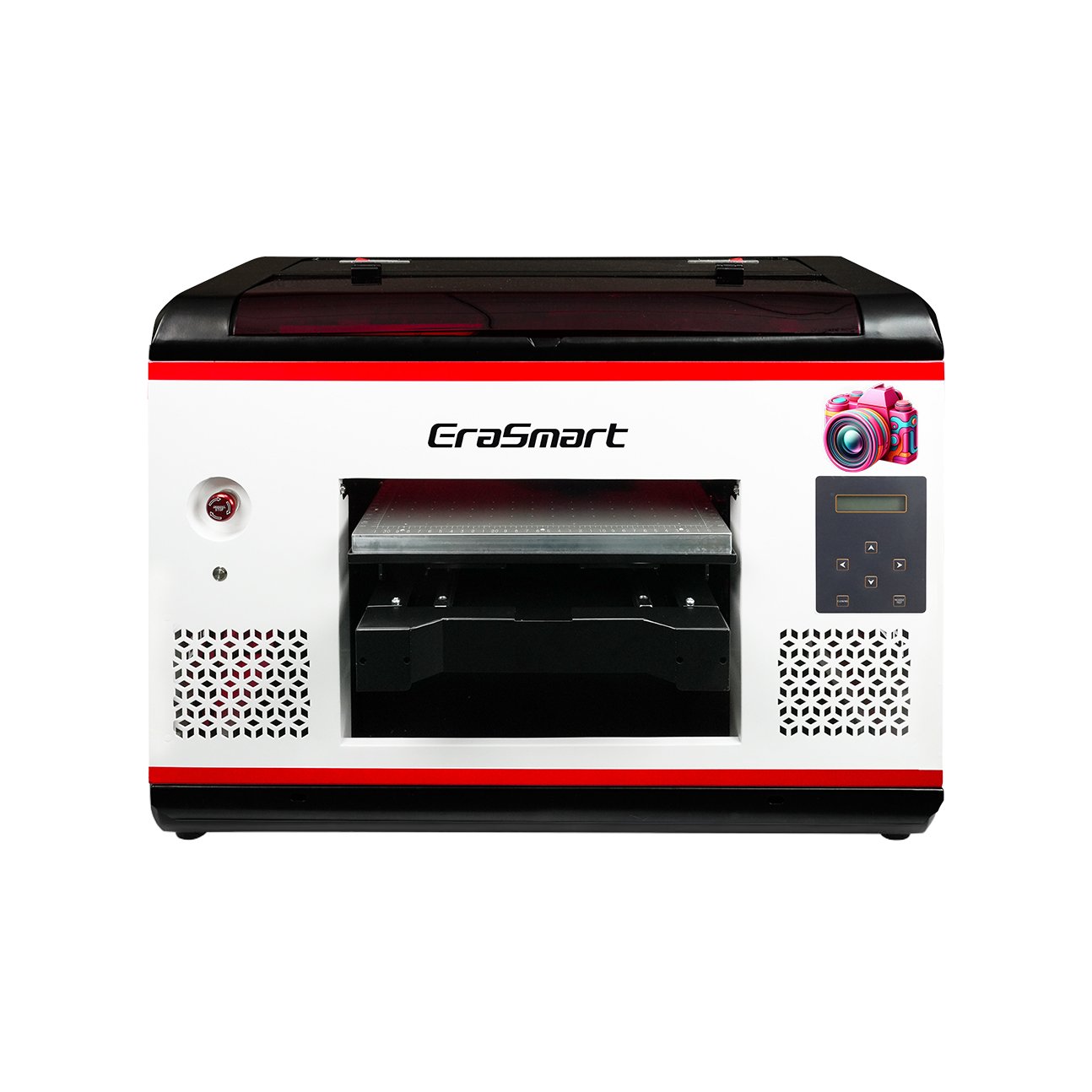

EraSmart A2 UV Printer with Dual Xp600 Print Head

The A2 UV Printer is engineered to bring professional-grade, large-format printing capabilities to your workshop. At the heart of this machine are dual XP600 printheads, providing the speed and accuracy needed for serious commercial work. This configuration ensures consistent, flawless output with dedicated channels for CMYK colors, an opaque White (WW) underlay vital for printing on dark or transparent materials, and multiple layers of Varnish (VVVVVV) to create stunning tactile effects or a high-gloss finish.

From custom floor tiles and large wooden plaques to detailed metal signage, the A2 handles it all. Its generous 16.5" x 23.6" (420x600mm) print bed significantly increases your potential product size and batch output, while the adjustable print height of 0-5.1" (0-130mm) accommodates a wide variety of promotional items and custom parts.

The incredible 1440dpi printing resolution guarantees that every piece you create boasts photo-quality detail and smooth color gradients. Built around a reliable Hoson motherboard, the A2 is designed for stable, continuous performance. Setup and operation are simple, running seamlessly on Windows XP, 7, 8, 10, or 11 with industry-standard RIP software like Riin and EraRip. Best of all, the integrated auto-cleaning function minimizes downtime and keeps your printheads in optimal condition.

Model A2

Print Head XP600

No. Of Print Heads Dual Printheads

Operation System Windows XP/7/8/10/11

Printing Width 420*600mm (Approx. 16.5" x 23.6")

Printing Height 0-130mm (Approx. 0-5.1")

Printing Resolution 1440dpi

Printing Speed 8pass 5.5㎡/H

Printing Environment 15-30℃ (59-86°F)

Relative Humidity 40-60%

Voltage 220V/110V

Rated Power 200W

Printing Material Metal/Acrylic/Glass/Wood/Plastic/Ceramics/Leather/KT Board/Canvas/ABS/PVC/TPU, etc.

Features & Benefits: Why the A2 is Your Best Investment

Scale Your Business with Large Format: The 16.5" x 23.6" print bed opens the door to higher-value products like large custom signs, cabinet doors, and personalized artwork, expanding your profit potential beyond small items.

Unrivaled Material Versatility: Print directly on almost anything! Customize metal, glass, wood, plastic, ceramics, leather, and more to diversify your product line and capture new markets.

Superior Print Quality and Durability: Utilizing high-quality UV Ink and a 1440dpi resolution, your prints cure instantly, offering vibrant, detailed images that are extremely resistant to scratching, water, and fading.

Maximize Efficiency with Dual Printheads: The dual XP600 printheads boost printing speed up to 5.5 sq.m/hour, allowing for faster turnaround times and higher daily production volumes, which is crucial for print-on-demand success.

Automated Reliability: The auto-cleaning feature significantly cuts down on manual maintenance time, ensuring your printheads are consistently clear and ready to deliver peak performance without constant supervision.

Stable and Secure Printing: The integrated suction platform holds materials firmly in place throughout the printing process, guaranteeing precise alignment and preventing costly misprints, even on delicate or flexible items.

(This section will contain detailed guides and visual aids to help users get started and master their A2.)

Quick Start Guide: Unboxing & Initial Setup:

A step-by-step video walking you through unpacking your A2 and setting up the ink system.

Software Installation & Workflow:

Learn how to install and configure Riin/EraRip software on your Windows PC.

A visual guide to preparing your files (tiff, jpeg, png, etc.) and starting a print job.

Loading & Preparing Your Materials:

Watch our tutorial on correctly placing and securing various materials on the suction platform.

Tips for adjusting the print height for different thicknesses.

Maintaining Your A2: Daily & Long-Term Care:

Essential tips for utilizing the auto-cleaning function and general printer upkeep to ensure longevity and consistent performance.

Q: What is the largest material size I can print on?

A: The maximum printing area is approximately 16.5" x 23.6" (420x600mm), with a thickness (height) of up to 5.1" (130mm).

Q: What operating systems are compatible with the A2?

A: The A2 is compatible with Windows operating systems only (Windows XP/7/8/10/11).

Q: Does this printer print varnish effects?

A: Yes! With the CMYK+WW+VVVVVV configuration, the A2 can lay down multiple layers of varnish to create striking spot gloss, matte, or embossed/raised texture effects.

Q: How fast can this machine print?

A: The printing speed is up to 5.5 square meters per hour at 8 pass, making it highly efficient for a machine in this class.

Q: What is the ideal environment for the printer?

A: For the best performance and print quality, operate your A2 in a space where the temperature is between 59-86°F (15-30℃) and the relative humidity is between 40-60%.
